ACTIVE HARMONIC FILTER

Basic Power is a distributor of the Galt Electric Active Harmonic Filter (AHF). We custom-tune this filter based on our comprehensive diagnostic power quality field survey where we record all the harmonic waveforms present in your electrical system and then simulate these in our NHR 96KW Load Bank and tune the filter to mitigate the harmonics to <3% THD for clinical and data environments that require maximum reduction of electrical noise.

  • Harmonic compensation
  • Reactive power compensation
  • Unbalance compensation
  • 97% efficiency
  • Unlimited units parallel operation capability
  • 3-level circuit topology
  • IEEE 519, ER G5/4 compliance
  • Modbus standard communication protocols
  • Small footprint
  • Low maintenance design

VARIVAR

The VARIVAR (480V) has been designed to meet the power quality and energy conservation needs of the industrial sector and provides Power Factor Correction, Sag Mitigation, Optional Harmonic Filtration, Phase Balancing, Voltage and Current Optimization in addition to Peak KVAR shaving and I2R kWh conservation.

The VARIVAR has been tuned for up to 500kW with an average operational amperage of between 200A and 400A on one transformer load with a dynamic 150kVAR in 8 steps. Higher average operational amperages may require additional units. Additional transformer loads may require additional units.

VARIVAR SPECIFICATION SHEET

Click here to view Specification Sheet
TruWatts i430-3

Model 480-3 (480V)

The TruWatts 480-3 model (480V) has been designed to meet the power quality and energy conservation needs of the industrial sector and provides Surge Suppression, Sag Mitigation, Harmonic Filtration, Phase Balancing, Power Factor Correction, Voltage and Current Optimization in addition to Peak kW shaving and kWh conservation.

The TruWatts 480-3 Model has been tuned for 150kW to 300kW with an average operational amperage of between 200A and 400A on one transformer load. Higher average operational amperages may require additional units. Additional transformer loads may require additional units.

Our technicians can provide an estimate for an energy conservation solution for your facility upon receipt of electrical drawings and 12 months of kW and kWh data. A physical site survey is required before final determination and a written proposal for your project.

TruWatts i480-2

Model 480-2 (480V)

The TruWatts 480-2 model (480V) provides Surge Suppression, Sag Mitigation, Harmonic Filtration, Phase Balancing, Power Factor Correction, Voltage and Current Optimization in addition to Peak kW shaving and kWh conservation.

The TruWatts 480-2 model has been tuned for 100kW to 150kW with an average operational amperage between 100A and 150A on one transformer load.

TruWatts i430-3

Truwatts

The TruWatts 480-3 model (480V) has been designed to meet the power quality and energy conservation needs of the industrial sector and provides Power Factor Correction, Sag Mitigation, Optional Harmonic Filtration, Phase Balancing, Voltage and Current Optimization in addition to Peak KVAR shaving and I2R kWh conservation.

The TruWatts 480-3 Model has been tuned for 150kW to 300kW with an average operational amperage of between 200A and 400A on one transformer load with fixed 150kVAR. Higher average operational amperages may require additional units. Additional transformer loads may require additional units.

Our technicians can provide an estimate for an energy conservation solution for your facility upon receipt of electrical drawings and 12 months of kW and kWh data. A physical site survey is required before final determination and a written proposal for your project.

HANDS ON PRODUCTION

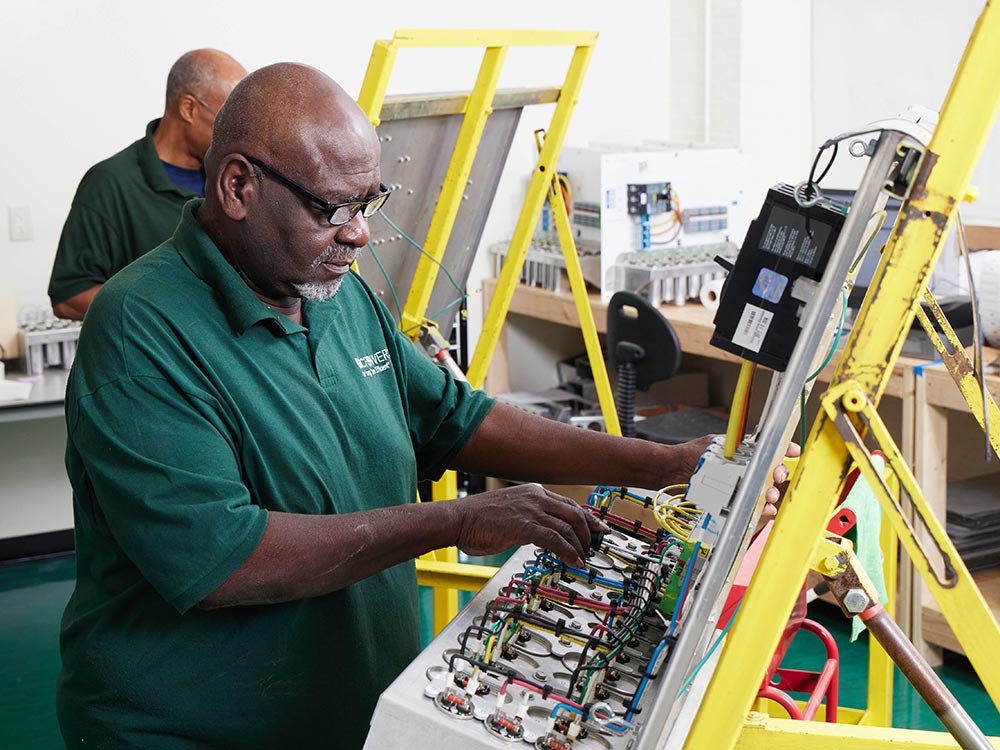

Production of TruWatts
Load bank
TruWatts c208-4

Model 208-4 (208V)

The TruWatts 208-4 model (208V) provides Surge Suppression, Sag Mitigation, Harmonic Filtration, Phase Balancing, Power Factor Correction, Voltage and Current Optimization in addition to Peak kW shaving and kWh conservation.

The TruWatts 208-4 model has been tuned for 80kW to 130kW with an average operational amperage between 250A and 400A on one transformer load.

TruWatts c208-3

Model 208-3 (208V)

The TruWatts 208-3 model (208V) provides Surge Suppression, Sag Mitigation, Harmonic Filtration, Phase Balancing, Power Factor Correction, Voltage and Current Optimization in addition to Peak kW shaving and kWh conservation.

The TruWatts 208-3 model has been tuned for 50kW to 100kW with an average operational amperage between 150A and 300A on one transformer load.

QUALITY ASSURANCE TESTING

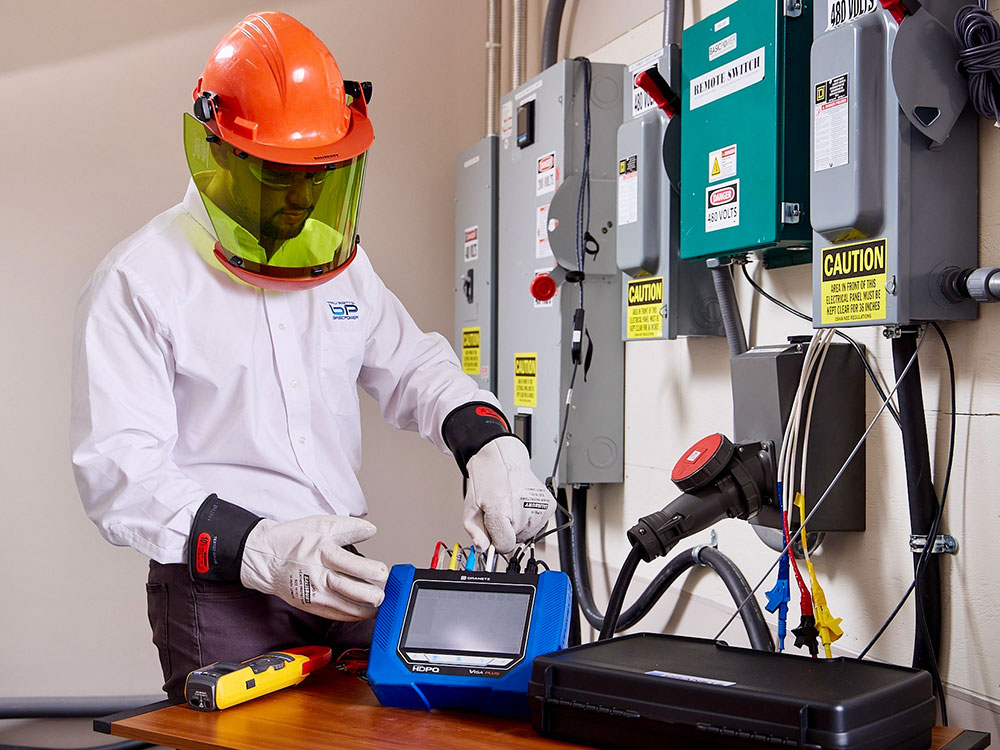

Power quality surveying
Load bank
TruWatts c208-2

Model 208-2 (208V)

The TruWatts 208-2 model (208V) provides Surge Suppression, Sag Mitigation, Harmonic Filtration, Phase Balancing, Power Factor Correction, Voltage and Current Optimization in addition to Peak kW shaving and kWh conservation.

The TruWatts 208-2 model has been tuned for 20kW to 40kW with an average operational amperage between 70A and 125A on one transformer load.

TruWatts r120-2

Model 120-2 (120/240V)

The TruWatts 120-2 model (120/240V) is a custom model designed for cellular tower sites and provides Surge Suppression, Sag Mitigation, Harmonic Filtration, Phase Balancing, Power Factor Correction, Voltage and Current Optimization in addition to Peak kW shaving and kWh conservation.

The TruWatts 120-2 model has been tuned for an average operational amperage between 70A and 120A on one transformer load.
